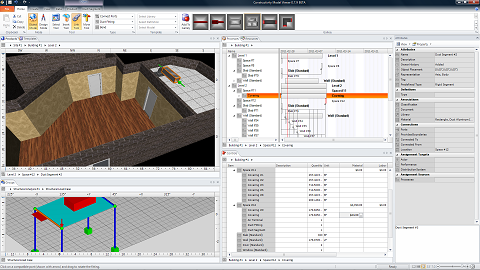

Constructivity for Windows enables you to create, edit, and view building information models.
Constructivity for Windows supports the full lifecycle of construction data, including:
- Building Design: Allocate spaces, slabs, walls, doors, windows, with elements interlinked for modification or analysis later.
- Bridge Design: Allocate alignments, spans, decks, girders, piers, abutments, with elements interlinked for modification or analysis later.
- System Design: Allocate networks of pipes, ducts, cables, with elements interlinked for modification or analysis later.
- Structural Analysis: Generate structural analysis models from physical models, run finite element analysis, and inspect results.
- Energy Analysis: Generate energy analysis models from physical models, run EnergyPlus analysis, and inspect results.
- Fabrication: Allocate parts according to available material stock, generate instructions for fabrication machinery.
- Building Automation: Integrate automation system data with physical models, compare actual performance with expected performance.
- Estimating: Perform quantity takeoff, generate schedules and estimates based on quantities interlinked with physical elements.
- Scheduling: Generate schedules from physical models and available resources, interoperate with Microsoft Project and other project management software.
- Product Data: Generate models for manufactured products, along with parametric geometry, product configurations, and operational behavior.
- Collaboration: Work on models simultaneously with others, compare versions visually, merge models, split models, and resolve conflicts.
Supported files types include:
- 3D Studio Max
- Business Process Model Notation (BPMN)
- Collada 3D
- Comma Separated Values (CSV)
- DSTV/NC1 Machine Fabrication
- Green Building XML (gbXML)
- EnergyPlus Energy Analysis
- Industry Foundation Classes (IFC) 2.3, 4.0, 4.1
- Jira Project Management
- LandXML 3D Geospatial
- Microsoft Access
- Microsoft Excel
- Microsoft Project
- STEP Manufacturing Product Models
- Sterolithography 3D
- Wavefront 3D
Constructivity for Windows is included with all organization-level subscriptions.
